Motif 04.267.1

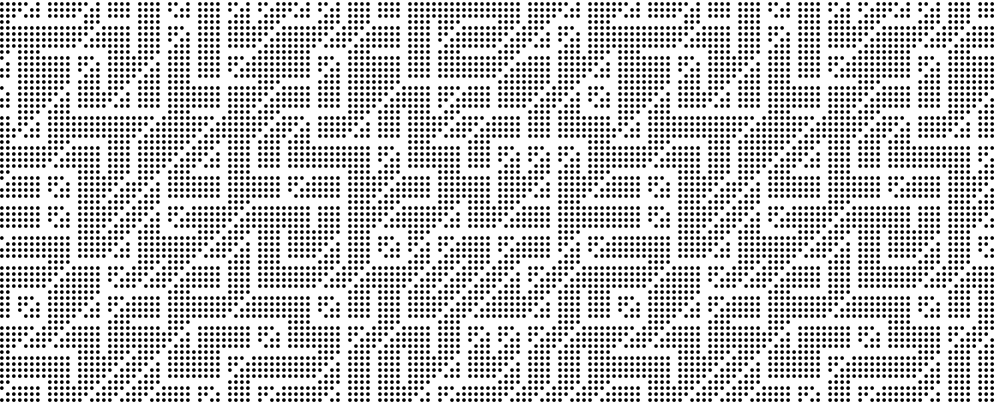

Detail

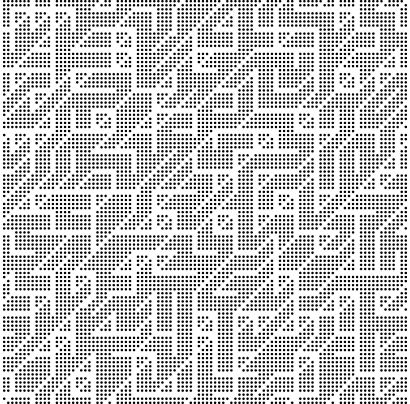

General view

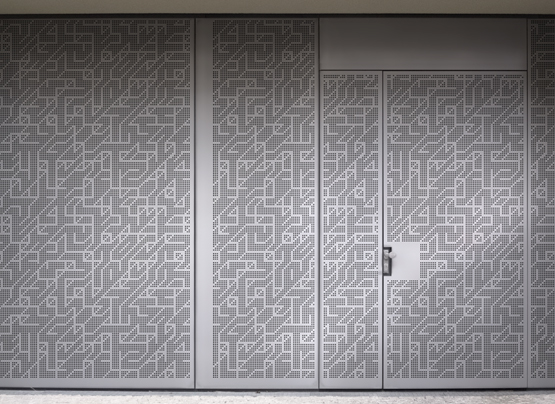

Application examples

Upon request, we undertake the adaptation of sizes to their projects.

Detail General view Application examples

detailansicht_zeigen

gesamtansicht_zeigen

anwendungsbeispiel_1_zeigen

Data sheet
Motif 04.267.1

File type: Vector / CAD

Category: Pattern

File size: 100 (W) x 100 (H) cm

Resolution: –

Color mode: cmyk / rgb

Scalable: Unlimited

Interpolable: –

Resolution: –

Price class: 6

This abstract, generative design pattern consists of holes of a single size and is particularly well suited to punching and milling. We supply production data in DXF or DWG format, as well as CAD files for the manufacture of perforated sheets and panels made from aluminium, stainless steel, timber or composite materials. The perforation pattern is ideal for the custom design of external façades on residential and commercial buildings, multi-storey car park façades, sun protection and anti-glare panels, balcony and terrace railings, as well as for interior fit-outs, such as room dividers and partition walls, suspended ceilings and ceiling elements, wall cladding, stair railings, radiator covers, decorative acoustic panels, reception desks, etc.

We will be happy to send you free layout files on request. (Variations of some motifs are also available, please contact us directly).

This motif is suitable for punching, milling and laser cutting of perforated metal sheets.
Sizes and spacing can be adapted to your projects at short notice.

More information and all motifs for punching, milling, laser cutting, water-jet cutting  to download here as an overview-PDF

Please see usage and prices for information regarding price classes, conditions of use, and data delivery.
Please note that the appearance of a motif’s color hues and contrast are dependant on the medium. There may be a difference in appearance between a motif displayed on a computer monitor or printed on a computer printer.
All motifs are protected by copyright. © ornament-control, Kathrin Kreitmeyer
