Motif 04.269.1

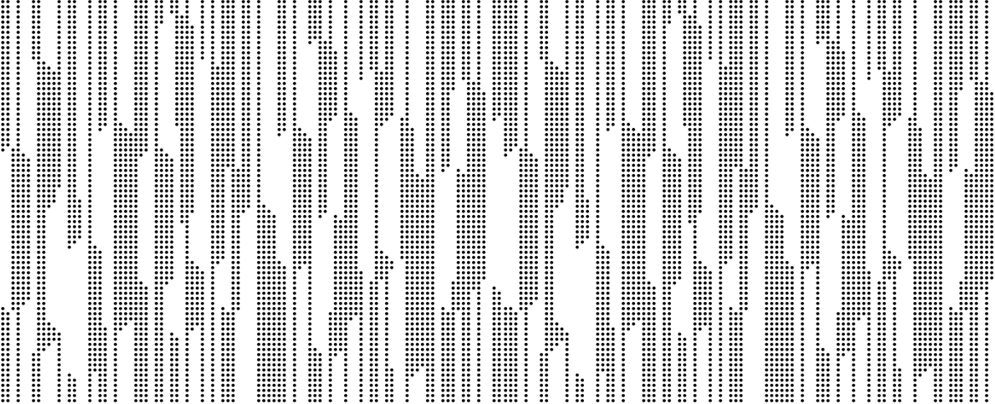

Detail

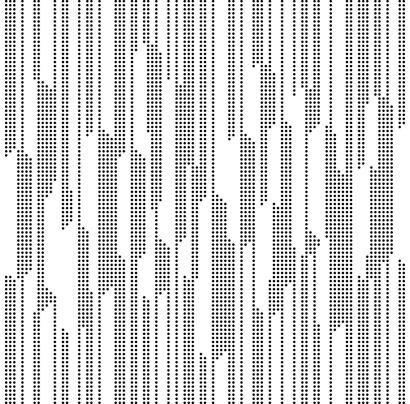

General view

Application examples

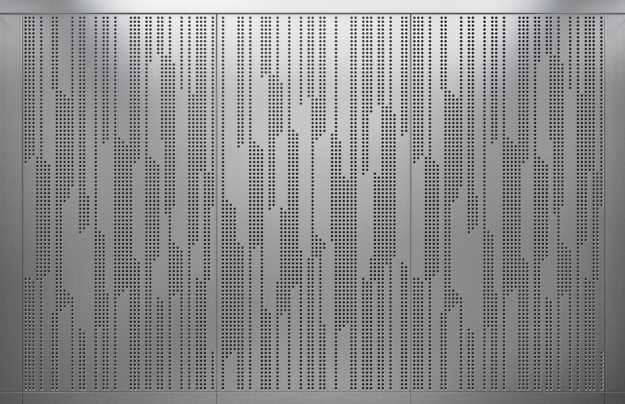

Perforated sheet metal, punched for high-quality interior trim.

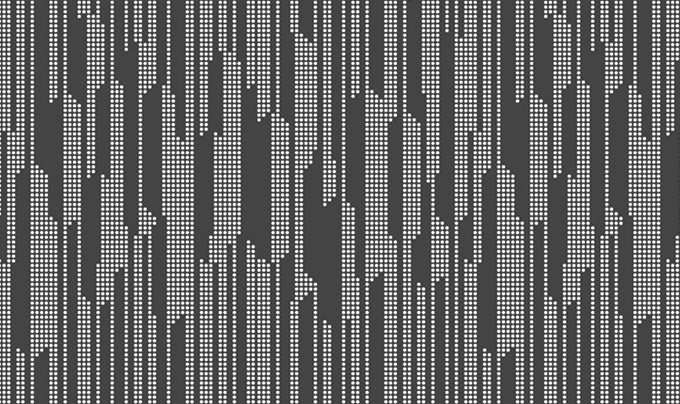

Motif 04.268.1 backlit

Detail General view Application examples

detailansicht_zeigen

gesamtansicht_zeigen

anwendungsbeispiel_1_zeigen

anwendungsbeispiel_2_zeigen

Data sheet
Motif 04.269.1

File type: Vector / CAD

Category: Pattern

File size: 100 (W) x 100 (H) cm

Resolution: –

Color mode: cmyk / rgb

Scalable: Unlimited

Interpolable: –

Resolution: –

Price class: 6

The perforated pattern with a 3D effect can be adapted to different perforation grids and material thicknesses, enabling flexible use in a variety of applications. The visual depth of the pattern lends façades of residential and commercial buildings, multi-storey car parks and sunshade panels a three-dimensional effect that changes depending on the angle of the light. Whether punched, milled or laser-cut – the pattern is customised for each construction project and supplied as a production-ready DXF / DWG file.

We will be happy to send you free layout files on request. (Variations of some motifs are also available, please contact us directly).

This motif is suitable for punching, milling and laser cutting of perforated metal sheets.
Sizes and spacing can be adapted to your projects at short notice.

More information and all motifs for punching, milling, laser cutting, water-jet cutting  to download here as an overview-PDF

Please see usage and prices for information regarding price classes, conditions of use, and data delivery.
Please note that the appearance of a motif’s color hues and contrast are dependant on the medium. There may be a difference in appearance between a motif displayed on a computer monitor or printed on a computer printer.
All motifs are protected by copyright. © ornament-control, Kathrin Kreitmeyer
